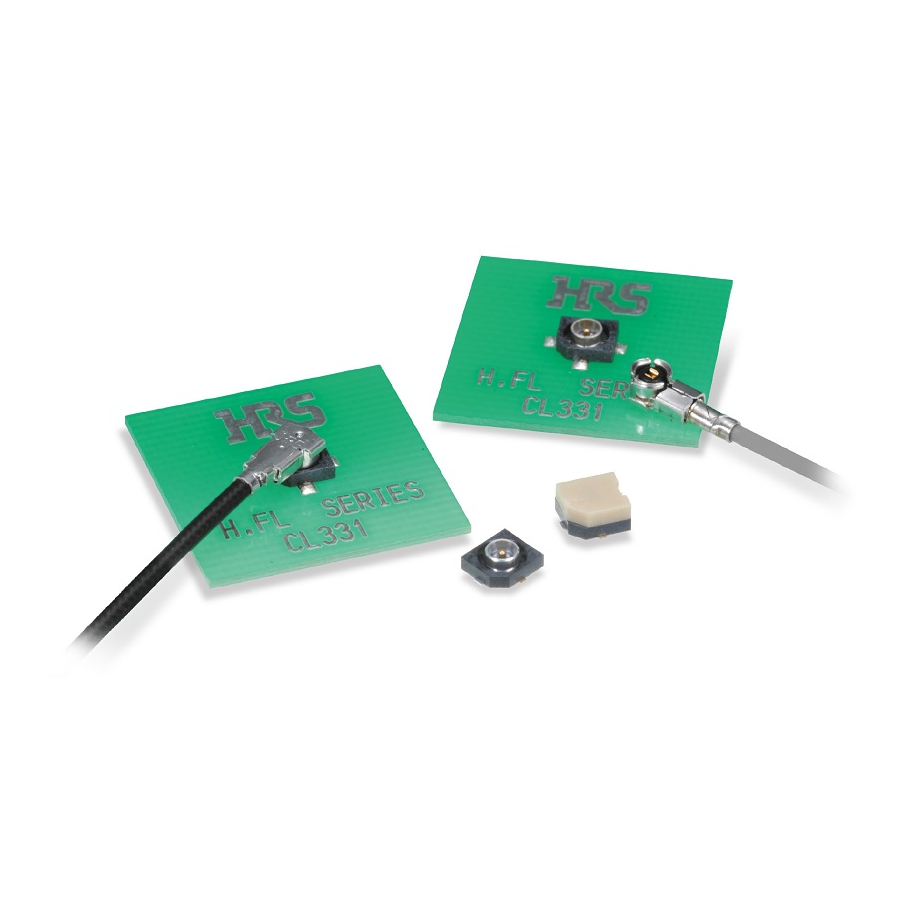

H.FL-R-SMT(C)(10)
Manufacturer:
Hirose Electric
Mfr.Part #:
H.FL-R-SMT(C)(10)
Datasheet:
Description:
RF / Coaxial Connectors SMD/SMT Receptacle 50 Ω
| Parameter | Value |
|---|---|
| Length | 5 mm |
| Termination | Solder |
| Max Operating Temperature | 90 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Reel |
| Depth | 4.5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Reverse |
| Insulation Resistance | 500 MΩ |
| REACH SVHC | No SVHC |
| Dielectric Material | Polymer |
| Contact Plating | Gold |
| Impedance | 50 Ω |
| Contact Material(Contact Finish) | Bronze |
| Frequency | 3 GHz |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Gender | Male |
| Body Material | Bronze |
| Connector Type | Receptacle |
| Max Frequency | 3 GHz |
| Fastening Type | Snap |
| Housing Color | Black |
| Plating | Silver |
| Body Plating | Silver |
| RF Series | H.FL |
| Contact Termination | Solder |
| Shield Termination | Solder |
Stock: 3793
Distributors
pcbx
pcbxUnit Price$1.21400
Ext.Price$1.21400
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.21400 | $1.21400 |
| 10 | $1.03276 | $10.32760 |
| 25 | $0.97034 | $24.25850 |
| 50 | $0.92589 | $46.29450 |
| 100 | $0.88229 | $88.22900 |
| 300 | $0.83394 | $250.18200 |
| 500 | $0.78824 | $394.12000 |
| 1000 | $0.76345 | $763.45000 |
